Q26. Which two objects support associative dimensions? (Select 2)

Q27. You need to create a hatch pattern that looks the same regardless of the viewport scale.
What should you do?

Q28. You have the drawing shown in the exhibit.

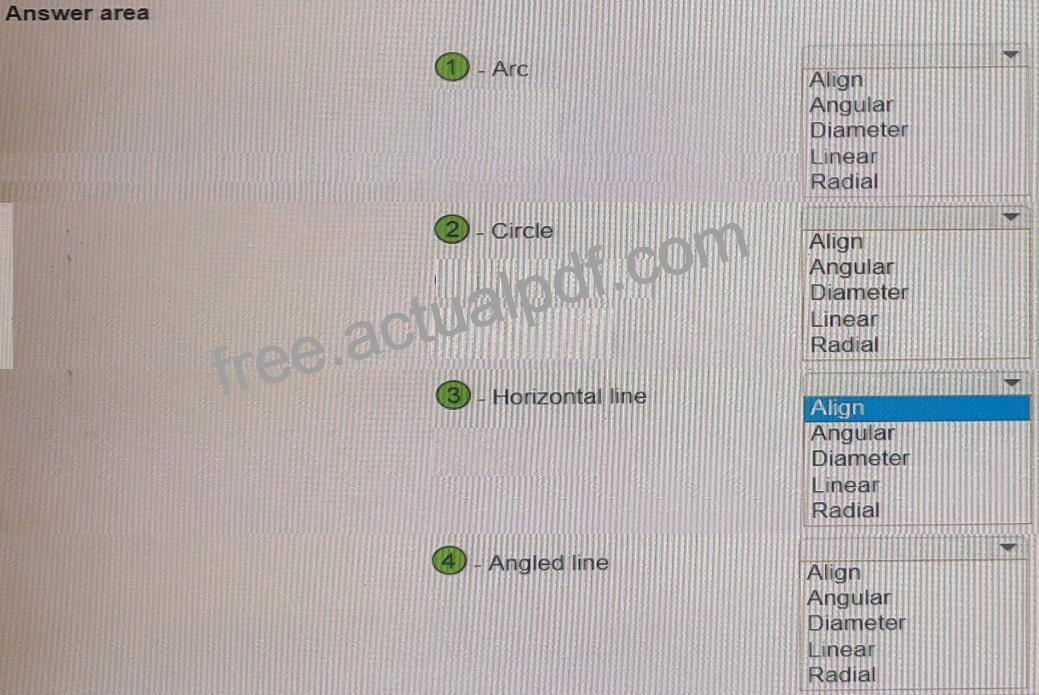

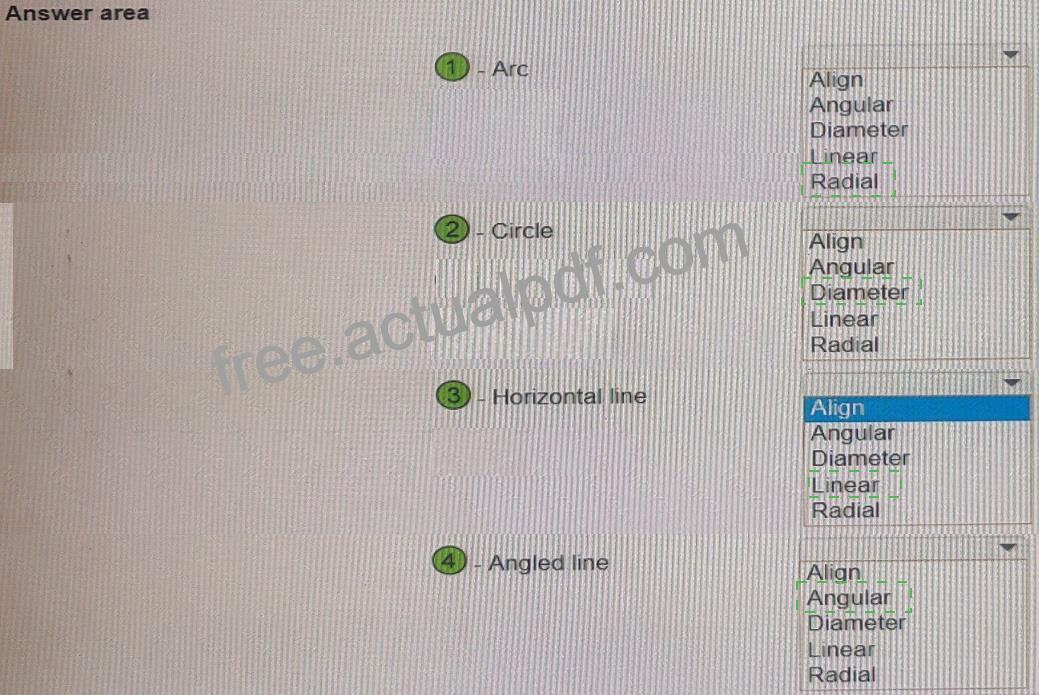

You are using the DIM command to preview suitable dimension type objects in the drawing.

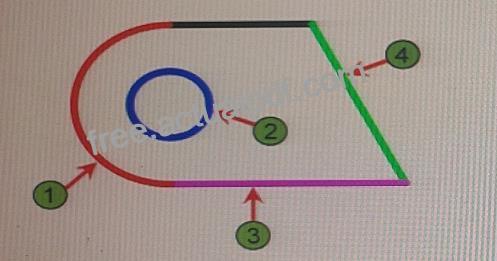

Which dimension type will appear when you hover over each object? Select the appropriate dimension type from each of the drop-down lists.

Q29. What should be typed at the command line in order to start creating a line for drawing reference that starts at a defined point and extends to infinity in the designated direction?

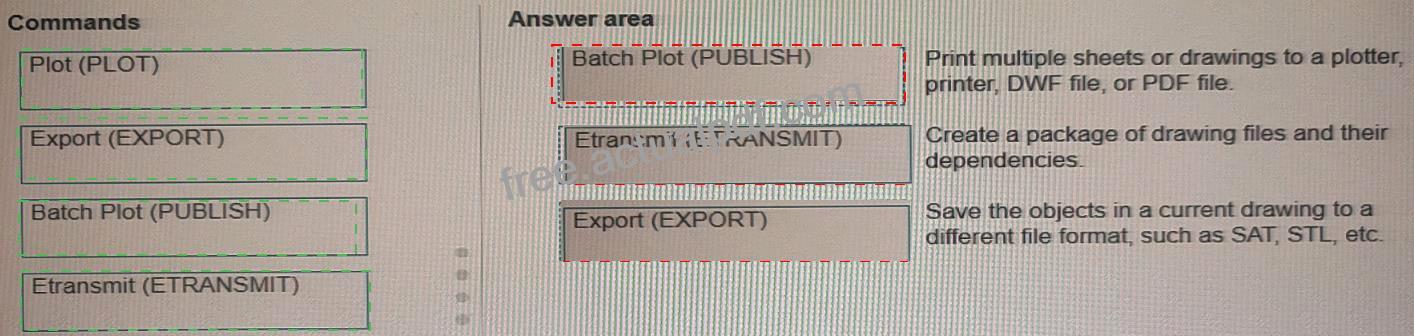

Q30. Move three applicable commands from the list on the left to the corresponding function on the right.

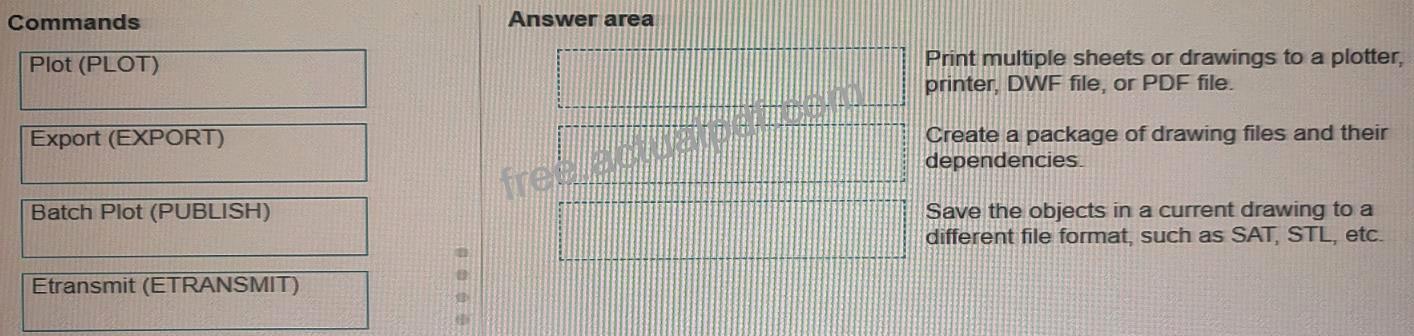

Commands may be used once or not at all (Select 3)

Q31. You have a drawing that contains three of the same objects.

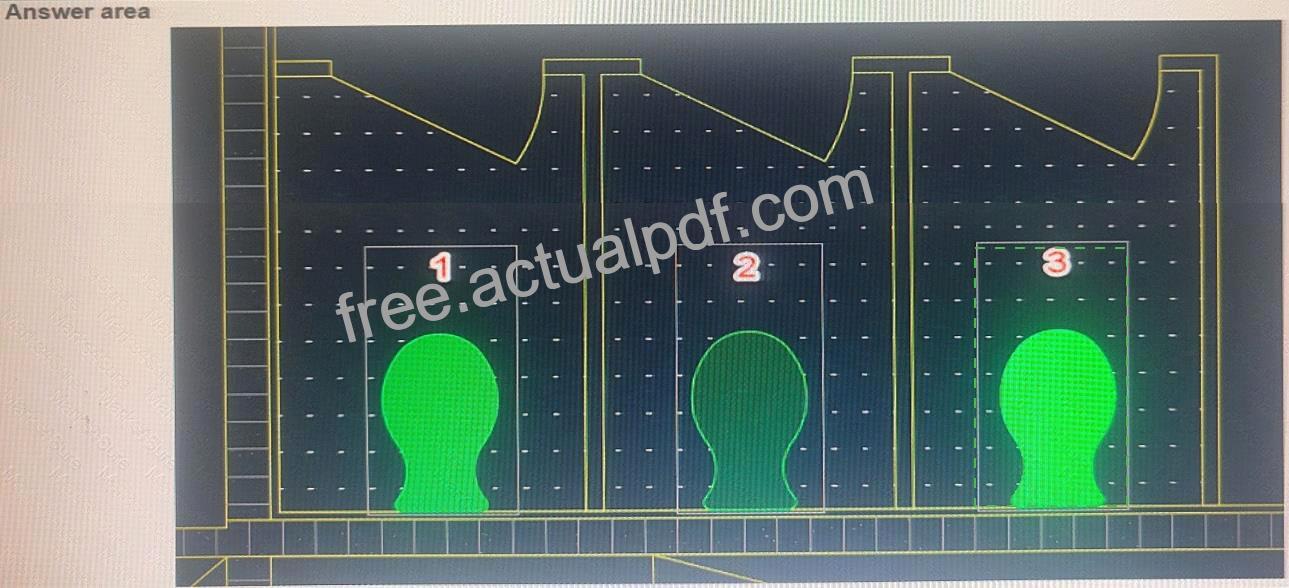

Which object has layer transparency set to 90? Click the correct object in the answer area.

Q32. In the Layer Properties Manager, which column should you use to prevent a layer from being displayed in the active viewport only?

Q33. Refer to the exhibit.

A workstation configuration has been created with the rectangular array command (ARRAYREST. The array is associative and has not been exploded or edited in any way. The dimensions are for reference only To adhere to current office guidelines, the walkways between the workstations need to the made wider.
Which three actions are necessary to meet office layout guidelines? (Choose three.)

Q34. You are setting up a drawing layout.
You need to rotate the viewport viewing angle by 90 degrees without rotating the viewport.
What should you do next?

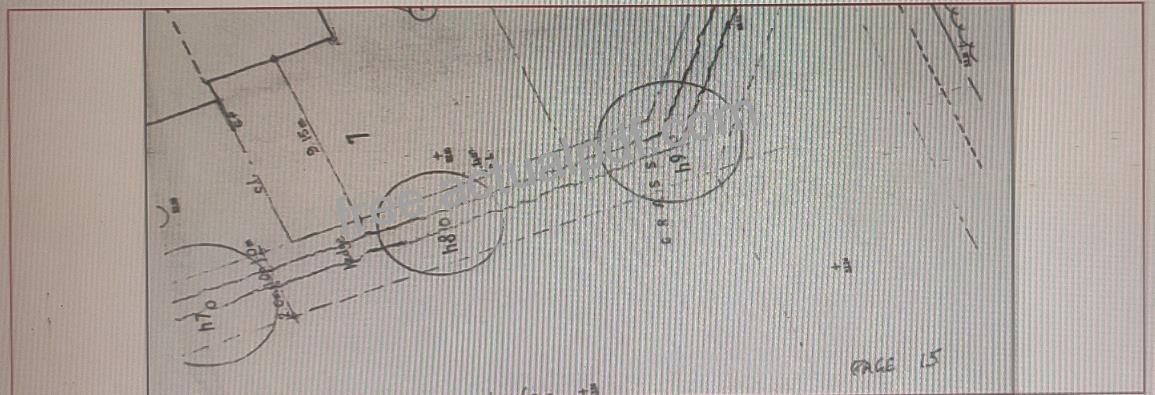

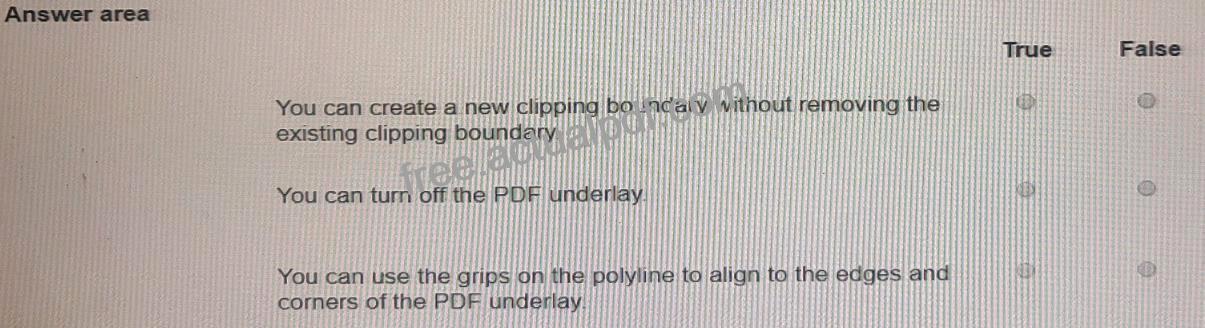

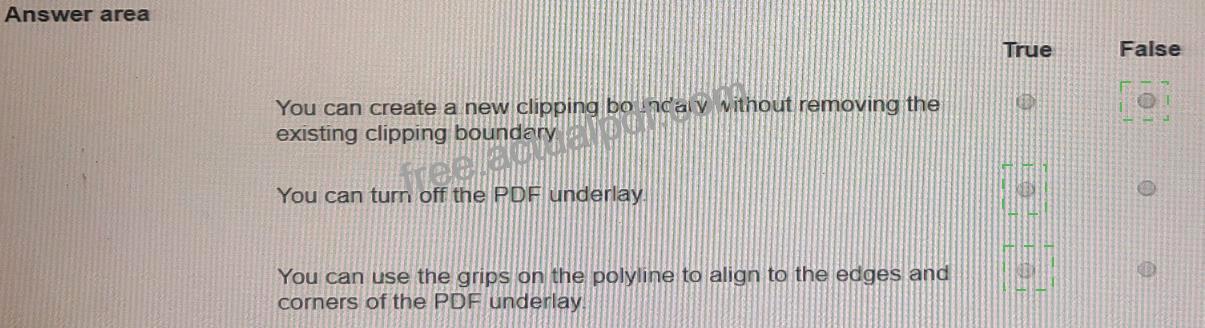

Q35. You place a red rectangular polyline over a PDF underlay in a drawing, and then use the rectangular polyline as a clipping boundary. The result is shown in the exhibit.
Select whether each statement is True or False.

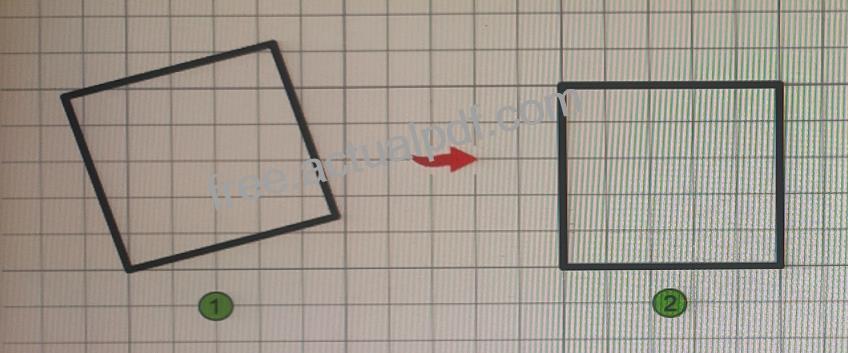

Q36. In which order should you perform the actions to rotate square (1) to match the angle of square (2).

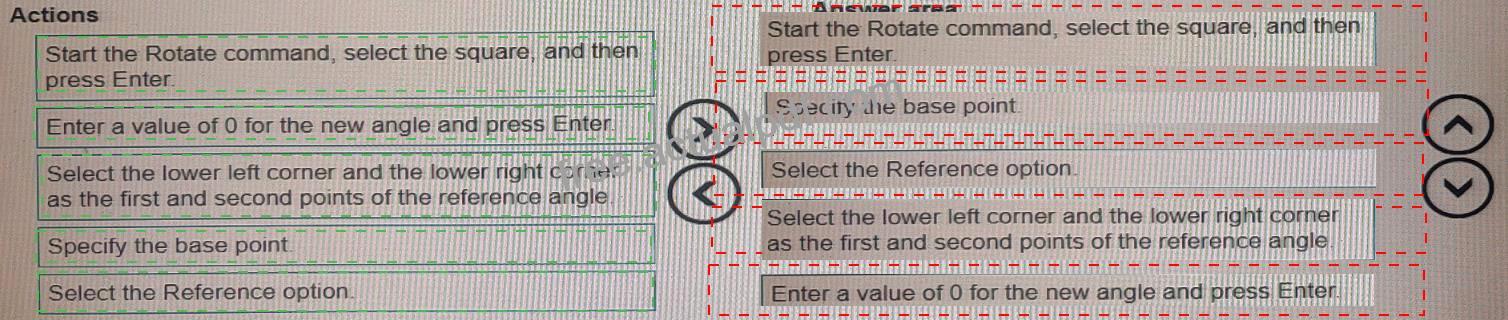

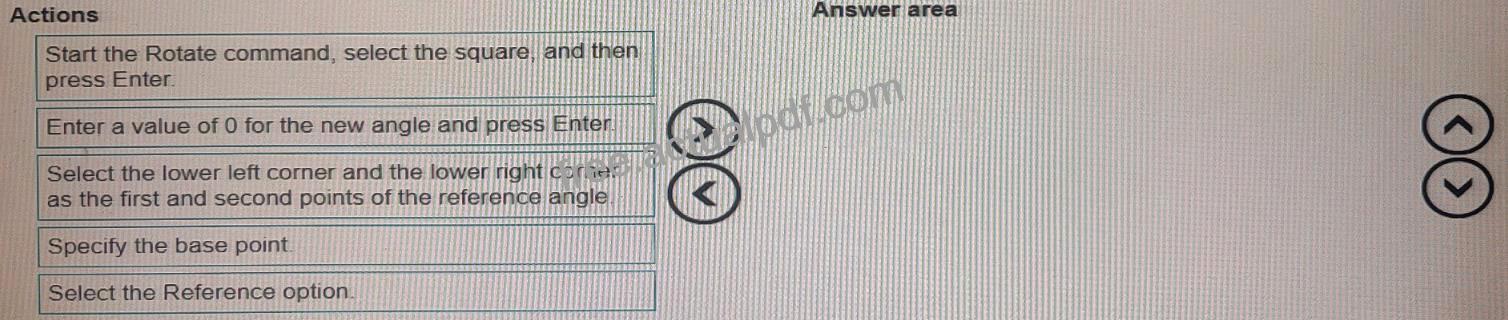

Move all actions to the answer area and place them in the correct order.

Q37. Refer to the exhibit.

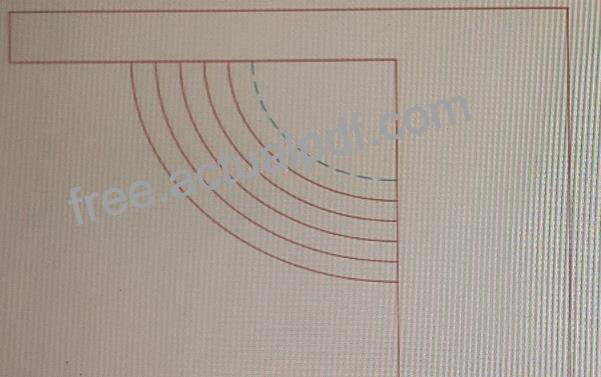

The exhibit shows a set of ornamental garden stairs going up to a walkway as part of a landscaping design.
You need to make sure that the edge of the top step in shown in a different linetype, as shown by the dashed line in the exhibit.
Which prompt in the OFFSET command should you use?

Q38. Your company asks you to research alternative editable CAD formats to export to for non-AutoCAD users.
Which three alternative CAD file formats can be exported from AutoCAD? (Select 3)

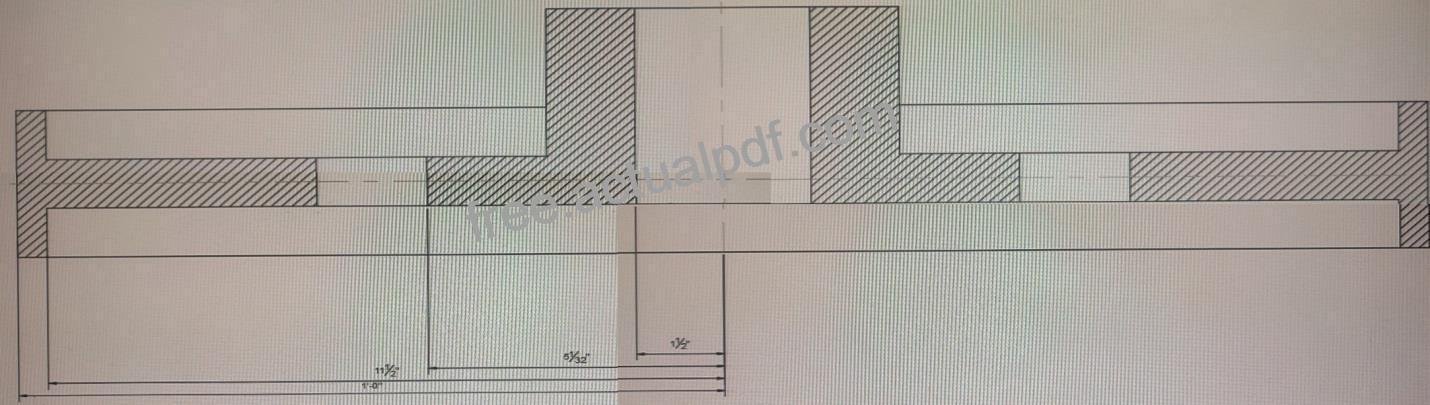

Q39. Refer to the exhibit.

This section view was dimensioned using Baseline Dimensions The dimensions are too close together which impacts the drawing’s legibility. What is the most efficient method to avoid this problem in the future?

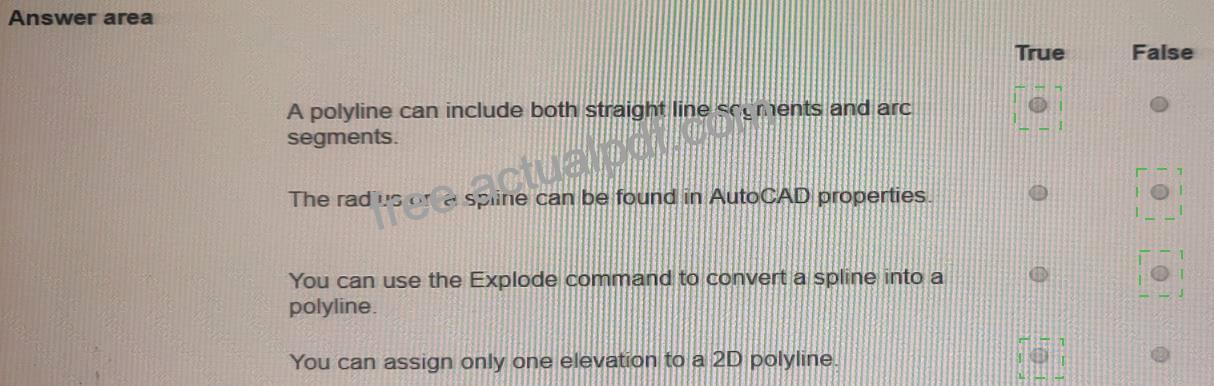

Q40. Select whether each statement is True or False.

Q41.

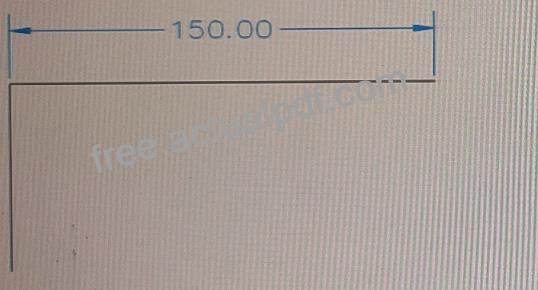

You have a line segment that is 150 units long as shown in the exhibit.
You need the line to be 200 units long without adding any additional linework. The leftmost end of the line must remain in the current position.
What should you do?

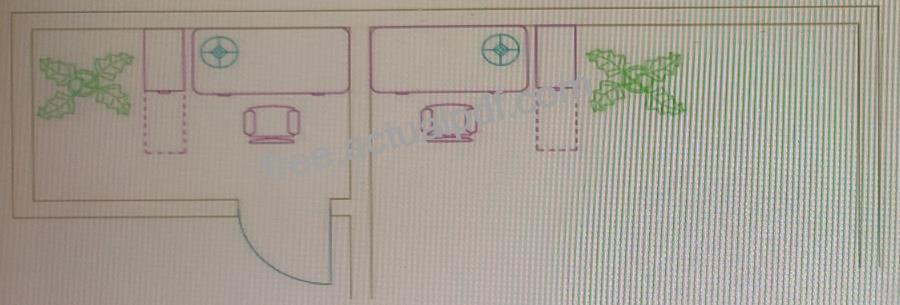

Q42. You have the office arrangement shown in exhibit 1. (Refer to the exhibit 1 tab.)

You need a mirror line to create the right-hand office arrangement shown in exhibit 2. (Refer to the exhibit 2 tab.)

Which tool would you use to make sure the mirror line is centered between the two wall lines without adding additional linework?

Q43. One of the lines in the drawing is at a 30 degree angle. What’s the quickest way to align the X-axis of the UCS to that line?
