Get Juniper JN0-214 Dumps Questions [2025] To Gain Brilliant Result [Q39-Q59]

Containers are lightweight because they don’t need the extra load of a hypervisor, but run directly within the host machine’s kernel. This means they start up almost instantly and use less RAM.
Images are constructed from layered filesystems and share common files, making disk usage and image downloads much more efficient. Containers are isolated from each other and the host system. They have their own filesystem and networking, and can be constrained to not allow root access outside the container. They run on top of a host operating system.

There are no virtual machines. Referring to the exhibit, which shows the output of the openstack server list command, we can see that there are no rows in the table, which means that there are no servers (or virtual machines) in the OpenStack environment. The command openstack server list is used to list servers that you can access. The other statements are incorrect, because the exhibit does not show any information about projects, services, or compute nodes. To list projects, you would use the command openstack project list. To list services, you would use the command openstack service list. To list compute nodes, you would use the command openstack compute service list.

In cloud environments, virtual networks are used to support applications that may rely on different protocols for communication. Let’s analyze each option:
A . a Layer 3 virtual network
Incorrect: A Layer 3 virtual network operates at the IP level and is designed for routing traffic between subnets or networks. It is not suitable for applications that use non-IP protocols (e.g., Ethernet-based protocols).
B . a Layer 2 virtual network
Correct: A Layer 2 virtual network operates at the data link layer (Layer 2) and supports non-IP protocols by forwarding traffic based on MAC addresses. This makes it ideal for applications that rely on protocols like Ethernet, MPLS, or other Layer 2 technologies.
C . an Ethernet VPN (EVPN) Type 5 virtual network
Incorrect: EVPN Type 5 is a Layer 3 overlay technology used for inter-subnet routing in EVPN environments. It is not designed to support non-IP protocols.
D . a virtual network router connected to the virtual network
Incorrect: A virtual network router is used to route traffic between different subnets or networks. It operates at Layer 3 and is not suitable for applications using non-IP protocols.
Why Layer 2 Virtual Network?
Support for Non-IP Protocols: Layer 2 virtual networks forward traffic based on MAC addresses, making them compatible with non-IP protocols.
Flexibility: They can support a wide range of applications, including those that rely on Ethernet or other Layer 2 technologies.
JNCIA Cloud Reference:
The JNCIA-Cloud certification covers virtual networking concepts, including Layer 2 and Layer 3 networks. Understanding the differences between these layers is essential for designing networks that meet application requirements.
For example, Juniper Contrail supports Layer 2 virtual networks to enable seamless communication for applications using non-IP protocols.
Reference:
Virtual Networking Documentation
Juniper JNCIA-Cloud Study Guide: Virtual Networks

Kubernetes is an open-source container orchestration platform that automates the deployment, scaling, and management of containerized applications. Let’s analyze each statement:
A . Kubernetes is compatible with the container open container runtime.
Correct: Kubernetes supports the Open Container Initiative (OCI) runtime standards, which ensure compatibility with various container runtimes like containerd, cri-o, and others. This flexibility allows Kubernetes to work with different container engines beyond just Docker.
B . Kubernetes requires the Docker daemon to run Docker containers.
Incorrect: While Kubernetes historically used Docker as its default container runtime, it no longer depends on the Docker daemon. Instead, Kubernetes uses the Container Runtime Interface (CRI) to interact with container runtimes like containerd or cri-o. Docker’s runtime has been replaced by containerd in most modern Kubernetes deployments.
C . A container is the smallest unit of computing that you can manage with Kubernetes.
Correct: In Kubernetes, a container represents the smallest deployable unit of computing. Containers encapsulate application code, dependencies, and configurations. Kubernetes manages containers through higher-level abstractions like Pods, which are groups of one or more containers.
D . A Kubernetes cluster must contain at least one control plane node.
Incorrect: While a Kubernetes cluster typically requires at least one control plane node to manage the cluster, this statement is incomplete. A functional Kubernetes cluster also requires at least one worker node to run application workloads. Both control plane and worker nodes are essential for a fully operational cluster.
Why These Answers?
Compatibility with OCI Runtimes: Kubernetes’ support for OCI-compliant runtimes ensures flexibility and avoids vendor lock-in.
Containers as Smallest Unit: Understanding that containers are the fundamental building blocks of Kubernetes is crucial for designing and managing applications in a Kubernetes environment.
JNCIA Cloud Reference:
The JNCIA-Cloud certification covers Kubernetes as part of its container orchestration curriculum. Understanding Kubernetes architecture, compatibility, and core concepts is essential for deploying and managing containerized applications in cloud environments.
For example, Juniper Contrail integrates with Kubernetes to provide advanced networking and security features for containerized workloads. Proficiency with Kubernetes ensures seamless operation of cloud-native applications.
Reference:
Kubernetes Documentation: Container Runtimes
Juniper JNCIA-Cloud Study Guide: Kubernetes

In cloud environments, virtual machines (VMs) connect to virtual networks to enable communication. Identifying the network to which a VM interface is connected is essential for proper configuration and isolation. Let’s analyze each option:
A . virtual network ID
Correct: The virtual network ID uniquely identifies the virtual network to which a VM interface is connected. This ID is used to logically group VMs and ensure they can communicate within the same network while maintaining isolation from other networks.
B . machine access control (MAC)
Incorrect: The MAC address is a hardware identifier for a network interface card (NIC). While it is unique to each interface, it does not identify the network to which the VM is connected.
C . Virtual Extensible LAN (VXLAN)
Incorrect: VXLAN is a tunneling protocol used to create overlay networks in cloud environments. While VXLAN encapsulates traffic, it does not directly identify the network to which a VM interface is connected.
D . virtual tunnel endpoint (VTEP)
Incorrect: A VTEP is a component of overlay networks (e.g., VXLAN) that encapsulates and decapsulates traffic. It is used to establish tunnels but does not identify the virtual network itself.
Why Virtual Network ID?
Logical Isolation: The virtual network ID ensures that VMs are logically grouped into isolated networks, enabling secure and efficient communication.
Scalability: Virtual networks allow cloud environments to scale by supporting multiple isolated networks within the same infrastructure.
JNCIA Cloud Reference:
The JNCIA-Cloud certification emphasizes understanding virtual networking concepts, including virtual networks and their identifiers. Virtual network IDs are fundamental to cloud architectures, enabling multi-tenancy and network segmentation.
For example, Juniper Contrail uses virtual network IDs to manage connectivity and isolation for VMs in cloud environments. Proper configuration of virtual networks ensures seamless communication and security.
Reference:
Virtual Networking Documentation
Juniper JNCIA-Cloud Study Guide: Virtual Networks

To deploy a Kubernetes application with all its required resources packaged together, a tool that supports templating and variable management is needed. Let’s analyze each option:
A . A YAML manifest should be used for the application.
Incorrect:
While YAML manifests are used to define Kubernetes resources, they do not provide a mechanism to package multiple resources or define variables at deployment time. Managing complex applications with plain YAML files can become cumbersome.
B . A Helm chart should be used for the application.
Correct:
Helm is a package manager for Kubernetes that allows you to define, install, and upgrade applications using charts . A Helm chart packages all the required resources (e.g., deployments, services, config maps) into a single unit and allows you to define variables (via values.yaml) that can be customized at deployment time.
C . An Ansible playbook should be run for the application.
Incorrect:
Ansible is an automation tool that can be used to deploy Kubernetes resources, but it is not specifically designed for packaging and deploying Kubernetes applications. Helm is better suited for this purpose.
D . Kubernetes imperative CLI should be used to run the application.
Incorrect:
Using imperative CLI commands (e.g., kubectl create) is not suitable for deploying complex applications. This approach lacks the ability to package resources or define variables, making it error-prone and difficult to manage.
Why Helm?
Packaging: Helm charts bundle all application resources into a single package, simplifying deployment and management.
Customization: Variables defined in values.yaml allow you to customize the deployment without modifying the underlying templates.
JNCIA Cloud Reference:
The JNCIA-Cloud certification emphasizes tools for managing Kubernetes applications, including Helm. Understanding how to use Helm charts is essential for deploying and maintaining complex applications in Kubernetes environments.
For example, Juniper Contrail integrates with Kubernetes to provide advanced networking features, ensuring seamless operation of applications deployed via Helm charts.
Reference:
Helm Documentation: Charts
Juniper JNCIA-Cloud Study Guide: Kubernetes Application Management

Kubernetes relies on a distributed key-value store to maintain its state and configuration data. Let’s analyze each option:
A . etcd
Correct: etcd is a distributed key-value store used as Kubernetes’ backend store. It stores all cluster data, including configurations, states, and metadata, ensuring consistency and reliability across the cluster.
B . firebase
Incorrect: Firebase is a Backend-as-a-Service (BaaS) platform for building mobile and web applications. It is unrelated to Kubernetes.
C . postgres
Incorrect: PostgreSQL is a relational database management system. While it can be used for other purposes, it is not the backend store for Kubernetes.
D . mongodb
Incorrect: MongoDB is a NoSQL database used for storing unstructured data. It is not used as Kubernetes’ backend store.
Why etcd?
High Availability: etcd is designed for distributed systems, providing strong consistency and fault tolerance.
Cluster State Management: Kubernetes uses etcd to store critical data such as pod states, service definitions, and configuration details.
JNCIA Cloud Reference:
The JNCIA-Cloud certification covers Kubernetes architecture, including the role of etcd. Understanding etcd’s function is essential for managing and troubleshooting Kubernetes clusters.
For example, Juniper Contrail integrates with Kubernetes to provide networking and security features, relying on etcd for cluster state management.
Reference:
Kubernetes Documentation: etcd
Juniper JNCIA-Cloud Study Guide: Kubernetes Architecture

Incorrect:
A NodePort service exposes the service on a static port on each node in the cluster, allowing external access via the node’s IP address and the assigned port. However, it does not use a cloud provider load balancer. The LoadBalancer service type is the one that leverages cloud provider load balancers for external access.
Why These Statements?
ClusterIP: Ensures internal-only communication, making it suitable for backend services that do not need external exposure.
DaemonSet: Guarantees that a specific pod runs on all nodes, ensuring consistent functionality across the cluster.
JNCIA Cloud Reference:
The JNCIA-Cloud certification covers Kubernetes resources and their functionalities, including services, DaemonSets, and Deployments. Understanding these concepts is essential for managing Kubernetes clusters effectively.
For example, Juniper Contrail integrates with Kubernetes to provide advanced networking features for services and DaemonSets, ensuring seamless operation of distributed applications.
Explanation:
Kubernetes resources are the building blocks of Kubernetes clusters, enabling the deployment and management of applications. Let’s analyze each statement:
A . A ClusterIP type service can only be accessed within a Kubernetes cluster.
Correct:
A ClusterIP service is the default type of Kubernetes service. It exposes the service internally within the cluster, assigning it a virtual IP address that is accessible only to other pods or services within the same cluster. External access is not possible with this service type.
B . A daemonSet ensures that a replica of a pod is running on all nodes.
Correct:
A daemonSet ensures that a copy of a specific pod is running on every node in the cluster (or a subset of nodes if specified). This is commonly used for system-level tasks like logging agents or monitoring tools that need to run on all nodes.
C . A deploymentConfig is a Kubernetes resource.
Incorrect:
deploymentConfig is a concept specific to OpenShift, not standard Kubernetes. In Kubernetes, the equivalent resource is called a Deployment , which manages the desired state of pods and ReplicaSets.
Reference:
Kubernetes Documentation: Services, DaemonSets, and Deployments
Juniper JNCIA-Cloud Study Guide: Kubernetes Resources

A Kubernetes deployment is a resource object in Kubernetes that provides declarative updates to applications. It allows you to describe an application’s life cycle, such as which images to use for the app, the number of pods there should be, and the way in which they should be updated. Two reasons to create a Kubernetes deployment rather than work with pods directly are:
A deployment ensures that the desired number of pods is running at all times. If a pod crashes, the Deployment will automatically re-create it.
A deployment simplifies pod updates and roll-outs. It allows you to describe a desired state in its specification and the Deployment controller changes the actual state to the desired state at a controlled rate.

The default container runtime engine used by OpenShift is cri-o. CRI-O is an open source, community-driven container engine. Its primary goal is to replace the Docker service as the container engine for Kubernetes implementations, such as OpenShift Container Platform.

The management plane in an SDN architecture is responsible for configuring and maintaining devices and their state. It provides the functions that manage the network, such as configuration, monitoring, and management of network devices. It is the layer of the network that carries administrative traffic, which is used for the network management.

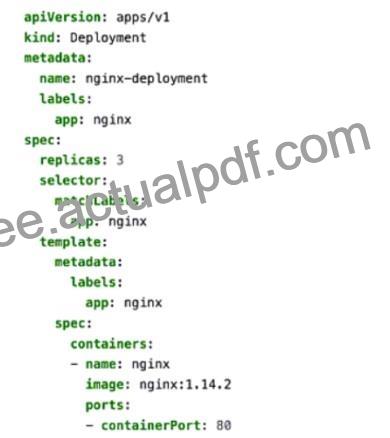

The provided YAML manifest defines a Kubernetes Deployment object that creates and manages a set of pods running the NGINX web server. Let’s analyze each statement in detail:
A . The created pods are receiving traffic on port 80.
Correct:
The containerPort: 80 field in the manifest specifies that the NGINX container listens on port 80 for incoming traffic.
While this does not expose the pods externally, it ensures that the application inside the pod (NGINX) is configured to receive traffic on port 80.
B . This manifest is used to create a deployment.
Correct:
The kind: Deployment field explicitly indicates that this manifest is used to create a Kubernetes Deployment .
Deployments are used to manage the desired state of pods, including scaling, rolling updates, and self-healing.
C . This manifest is used to create a deploymentConfig.
Incorrect:
deploymentConfig is a concept specific to OpenShift, not standard Kubernetes. In OpenShift, deploymentConfig provides additional features like triggers and lifecycle hooks, but this manifest uses the standard Kubernetes Deployment object.
D . Four pods are created as a result of applying this manifest.
Incorrect:
The replicas: 3 field in the manifest specifies that the Deployment will create three replicas of the NGINX pod. Therefore, only three pods are created, not four.
Why These Statements?
Traffic on Port 80:
The containerPort: 80 field ensures that the NGINX application inside the pod listens on port 80. This is critical for the application to function as a web server.
Deployment Object:
The kind: Deployment field confirms that this manifest creates a Kubernetes Deployment, which manages the lifecycle of the pods.
Replica Count:
The replicas: 3 field explicitly states that three pods will be created. Any assumption of four pods is incorrect.
Additional Context:
Kubernetes Deployments:
Deployments are one of the most common Kubernetes objects used to manage stateless applications. They ensure that the desired number of pod replicas is always running and can handle updates or rollbacks seamlessly.
Ports in Kubernetes:
The containerPort field in the pod specification defines the port on which the containerized application listens. However, to expose the pods externally, a Kubernetes Service (e.g., NodePort, LoadBalancer) must be created.
JNCIA Cloud Reference:
The JNCIA-Cloud certification covers Kubernetes concepts, including Deployments, Pods, and networking. Understanding how Deployments work and how ports are configured is essential for managing containerized applications in cloud environments.
For example, Juniper Contrail integrates with Kubernetes to provide advanced networking and security features for Deployments like the one described in the exhibit.
Reference:
Kubernetes Documentation: Deployments
Kubernetes Documentation: Pod Networking
Juniper JNCIA-Cloud Study Guide: Kubernetes Architecture

The YAML file provided in the exhibit defines a Kubernetes Service object of type NodePort. Let’s break down the key components of the configuration and analyze how external users access the WEB application:
Key Fields in the YAML File:
type: NodePort:
This specifies that the service is exposed on a static port on each node in the cluster. External users can access the service using the node’s IP address and the assigned nodePort.
port: 8080:
This is the port on which the service is exposed internally within the Kubernetes cluster. Other services or pods within the cluster can communicate with this service using port 8080.
targetPort: 5000:
This is the port on which the actual application (WEB application) is running inside the pod. The service forwards traffic from port: 8080 to targetPort: 5000.
nodePort: 31000:
This is the port on the node (host machine) where the service is exposed externally. External users will use this port to access the WEB application.
How External Users Access the WEB Application:
External users access the WEB application using the node’s IP address and the nodePort value (31000).
The Kubernetes service listens on this port and forwards incoming traffic to the appropriate pods running the WEB application.
Why Not Other Options?
A . 80: Port 80 is commonly used for HTTP traffic, but it is not specified in the YAML file. The service does not expose port 80 externally.
B . 8080: Port 8080 is the internal port used within the Kubernetes cluster. It is not the port exposed to external users.
D . 5000: Port 5000 is the target port where the application runs inside the pod. It is not directly accessible to external users.
Why 31000?
NodePort Service Type: The NodePort service type exposes the application on a high-numbered port (default range: 30000-32767) on each node in the cluster.
External Accessibility: External users must use the nodePort value (31000) along with the node’s IP address to access the WEB application.
JNCIA Cloud Reference:
The JNCIA-Cloud certification covers Kubernetes networking concepts, including service types like ClusterIP, NodePort, and LoadBalancer. Understanding how NodePort services work is essential for exposing applications to external users in Kubernetes environments.
For example, Juniper Contrail integrates with Kubernetes to provide advanced networking features, such as load balancing and network segmentation, for services like the one described in the exhibit.
Reference:
Kubernetes Documentation: Service Types
Juniper JNCIA-Cloud Study Guide: Kubernetes Networking

CN2 (Cranial Nerve II), also known as the optic nerve, controls the special sense of vision. It transmits visual information from the retina to the vision centers of the brain. Two functions that CN2 provides are:
It provides enhanced networking capabilities to private clouds. It transmits special afferent impulses of light to the brain and is involved in several reflex arcs related to the ocular system.
It provides an orchestration solution for VMs and containers. It is a unique structure that functions as the bridge between the retinal layer of the eyes and the visual cortex of the brain.

Juniper Cloud-Native Contrail Networking (CN2) can be integrated with Kubernetes. CN2 is optimized for Kubernetes-orchestrated environments and can be used to connect, isolate, and secure cloud workloads and services seamlessly across private, public, and hybrid clouds.

There are two available installation methods for an OpenShift cluster. One is the installer- provisioned infrastructure method, and the other is the user-provisioned infrastructure method.

Cloud service models define how services are delivered and managed in a cloud environment. The three primary models are:
Infrastructure as a Service (IaaS): Provides virtualized computing resources such as servers, storage, and networking over the internet. Examples include Amazon EC2 and Microsoft Azure Virtual Machines.
Platform as a Service (PaaS): Provides a platform for developers to build, deploy, and manage applications without worrying about the underlying infrastructure. Examples include Google App Engine and Microsoft Azure App Services.
Software as a Service (SaaS): Delivers fully functional applications over the internet, eliminating the need for users to install or maintain software locally. Examples include Salesforce CRM, Google Workspace, and Microsoft Office 365.
In this scenario, the organization is using Salesforce CRM, which is a SaaS solution. Salesforce provides a complete customer relationship management (CRM) application that is accessible via a web browser, with no need for the organization to manage the underlying infrastructure or application code.
Why SaaS?
No Infrastructure Management: The customer does not need to worry about provisioning servers, databases, or networking components.
Fully Managed Application: Salesforce handles updates, patches, and maintenance, ensuring the application is always up-to-date.
Accessibility: Users can access Salesforce CRM from any device with an internet connection.
JNCIA Cloud Reference:
The JNCIA-Cloud certification emphasizes understanding the different cloud service models and their use cases. SaaS is particularly relevant in scenarios where organizations want to leverage pre-built applications without the complexity of managing infrastructure or development platforms.
For example, Juniper’s cloud solutions often integrate with SaaS platforms like Salesforce to provide secure connectivity and enhanced functionality. Understanding the role of SaaS in cloud architectures is essential for designing and implementing cloud-based solutions.
Reference:
Juniper JNCIA-Cloud Study Guide: Cloud Service Models
Salesforce CRM Documentation

Docker containers are designed to be ephemeral, meaning they run based on their current configuration. When a Docker container is stopped, it does not automatically save changes made during its runtime. When you execute docker run, it starts a new instance of the container, not an existing version with its changes. If you want to persist changes between runs, you need to commit changes to a new Docker image or use Docker volumes for data persistence.

Multitenancy is a key feature of OpenStack, enabling multiple users or organizations to share cloud resources while maintaining isolation. Let’s analyze each option:
A . role
Incorrect: A role defines permissions and access levels for users within a project. While roles are important for managing user privileges, they do not directly enable multitenancy.
B . flavor
Incorrect: A flavor specifies the compute, memory, and storage capacity of a VM instance. It is unrelated to enabling multitenancy.
C . image
Incorrect: An image is a template used to create VM instances. While images are essential for deploying VMs, they do not enable multitenancy.
D . project
Correct: A project (also known as a tenant) is the primary mechanism for enabling multitenancy in OpenStack. Each project represents an isolated environment where resources (e.g., VMs, networks, storage) are provisioned and managed independently.
Why Project?
Isolation: Projects ensure that resources allocated to one tenant are isolated from others, enabling secure and efficient resource sharing.
Resource Management: Each project has its own quotas, users, and resources, making it the foundation of multitenancy in OpenStack.
JNCIA Cloud Reference:
The JNCIA-Cloud certification emphasizes understanding OpenStack’s multitenancy model, including the role of projects. Recognizing how projects enable resource isolation is essential for managing shared cloud environments.
For example, Juniper Contrail integrates with OpenStack Keystone to enforce multitenancy and network segmentation for projects.
Reference:
OpenStack Keystone Documentation
Juniper JNCIA-Cloud Study Guide: OpenStack Multitenancy.

Virtual networks are logical networks that are decoupled from the underlying network hardware.
This decoupling allows network administrators to manage their networks independently of the physical network topology. As such, virtual networks can span multiple devices, allowing for a high degree of flexibility and scalability. Furthermore, virtual networks are available on common Linux distributions, allowing for easy deployment and management.

Kubernetes worker nodes are responsible for running containerized applications and managing the workloads assigned to them. Each worker node contains several key components that enable it to function within a Kubernetes cluster. Let’s analyze each option:
A . kube-apiserver
Incorrect: The kube-apiserver is a control plane component, not a worker node component. It serves as the front-end for the Kubernetes API, handling communication between the control plane and worker nodes.
B . kubelet
Correct: The kubelet is a critical worker node component. It ensures that containers are running in the desired state by interacting with the container runtime (e.g., containerd). It communicates with the control plane to receive instructions and report the status of pods.
C . kube-scheduler
Incorrect: The kube-scheduler is a control plane component responsible for assigning pods to worker nodes based on resource availability and other constraints. It does not run on worker nodes.
D . kube-proxy
Correct: The kube-proxy is another essential worker node component. It manages network communication for services and pods by implementing load balancing and routing rules. It ensures that traffic is correctly forwarded to the appropriate pods.
Why These Components?
kubelet: Ensures that containers are running as expected and maintains the desired state of pods.
kube-proxy: Handles networking and enables communication between services and pods within the cluster.
JNCIA Cloud Reference:
The JNCIA-Cloud certification covers Kubernetes architecture, including the roles of worker node components. Understanding the functions of kubelet and kube-proxy is crucial for managing Kubernetes clusters and troubleshooting issues.
For example, Juniper Contrail integrates with Kubernetes to provide advanced networking and security features. Proficiency with worker node components ensures efficient operation of containerized workloads.
Reference:
Kubernetes Documentation: Worker Node Components
Juniper JNCIA-Cloud Study Guide: Kubernetes Architecture
