First Attempt Guaranteed Success in 200-301 Exam 2022

Real 200-301 Exam Questions are the Best Preparation Material

How much 200-301 CCNA Exam: Cisco Certified Network Associate costs

Examination Name: 200-301 CCNA Exam: Cisco Certified Network Associate
Passing Score: 65 % or higher
No. of Questions: 80 Questions
Types of questions: Performance Based Questions
Examination Fees: $250 USD

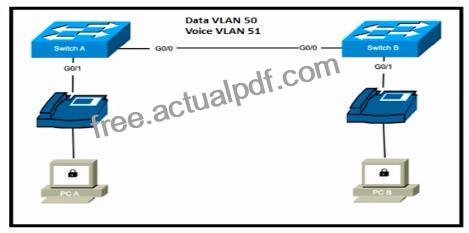

NO.266 Refer to the exhibit.

Switch A is newly configured. All VLANs are present in the VLAN database. The IP phone and PC A on Gi0/1 must be configured for the appropriate VLANs to establish connectivity between the PCs. Which command set fulfills the requirement?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

NO.267 An engineer must configure traffic for a VLAN that is untagged by the switch as it crosses a trunk link.
Which command should be used?

switchport trunk allowed vlan 10

switchport trunk native vlan 10

switchport mode trunk

switchport trunk encapsulation dot1q

NO.268 Which type of wireless encryption is used for WPA2 in preshared key mode?

TKIP with RC4

RC4

AES-128

AES-256

Explanation

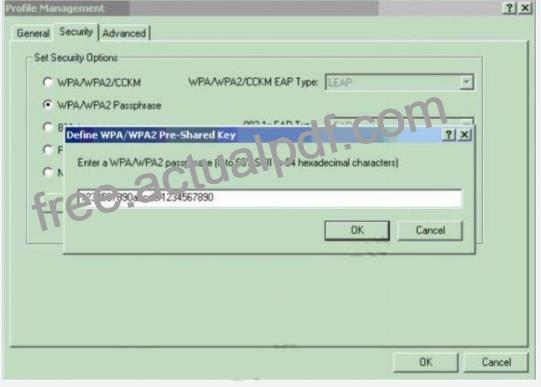

We can see in this picture we have to type 64 hexadecimal characters (256 bit) for the WPA2 passphrase so we can deduce the encryption is AES-256, not AES-128.

https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/67134-wpa2-config.html

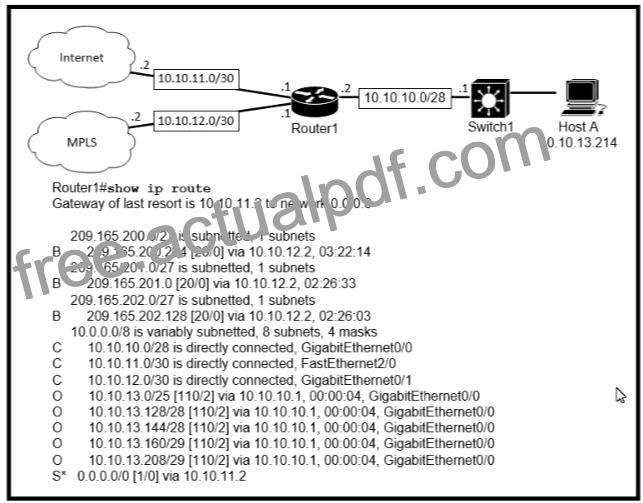

NO.269 Refer to the exhibit.

Which prefix does Router 1 use for traffic to Host A?

10.10.13.144/28

10.10.13.208/29

10.10.13.0/25

10.10.10.0/28

Host A address fall within the address range. However, if more than one route to the same subnet exist (router will use the longest stick match, which match more specific route to the subnet). If there are route 10.10.13.192/26 and 10.10.13.208/29, the router will forward the packet to /29 rather than /28.

NO.270 Configuration of which option is required on a Cisco switch for the Cisco IP phone to work?

PortFast on the interface

the interface as an access port to allow the voice VLAN ID

a voice VLAN ID in interface and global configuration mode

Cisco Discovery Protocol in global configuration mode

NO.271 Which entity assigns IPv6 addresses to end users?

ICANN

APNIC

RIR

ISPs

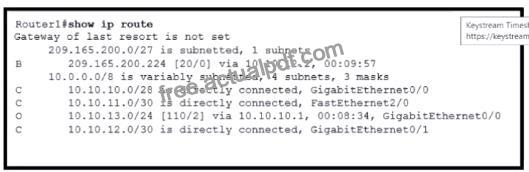

NO.272 Refer to me exhibit.

Which action is taken by the router when a packet is sourced from 10.10.10.2 and destined for 10.10.10.16?

It uses a route that is similar to the destination address

It discards the packets.

It floods packets to all learned next hops.

It Queues the packets waiting for the route to be learned.

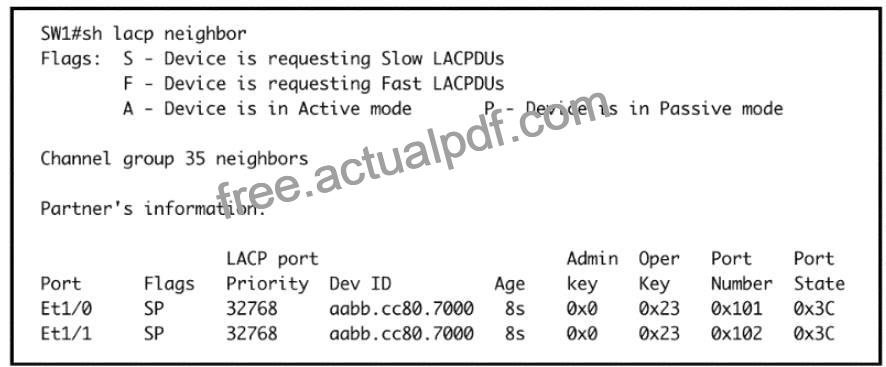

NO.273 Refer to the exhibit.

Based on the LACP neighbor status, in which mode is the SW1 port channel configured?

passive

mode on

auto

active

NO.274 What is a similarly between 1000BASE-LX and 1000BASE-T standards?

Both use the same data-link header and trailer formats

Both cable types support LP connectors

Both cable types support Rj-45 connectors

, Both support up to 550 meters between nodes

NO.275 DRAG DROP

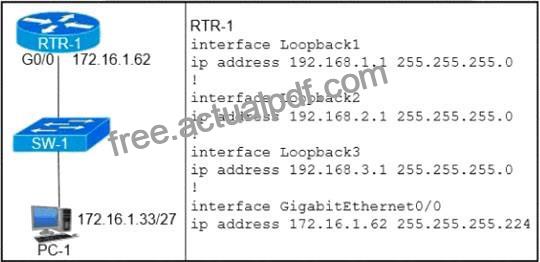

NO.276 Refer to the exhibit.

Which configuration on RTR-1 denies SSH access from PC-1 to any RTR-1 interface and allows all other traffic?

access-list 100 deny tcp host 172.16.1.33 any eq 22 access-list 100 permit ip any any interface GigabitEthernet0/0 ip access-group 100 in

access-list 100 deny tcp host 172.16.1.33 any eq 22 access-list 100 permit ip any any line vty 0 15 ip access-group 100 in

access-list 100 deny tcp host 172.16.1.33 any eq 23 access-list 100 permit ip any any interface GigabitEthernet0/0 ip access-group 100 in

access-list 100 deny tcp host 172.16.1.33 any eq 23 access-list 100 permit ip any any line vty 0 15 ip access-group 100 in

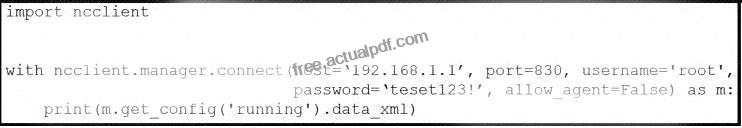

NO.277 Refer to the exhibit.

After running the code in the exhibit, which step reduces the amount of data that the NETCONF server returns to the NETCONF client, to only the interface’s configuration?

Use the Ixml library to parse the data returned by the NETCONF server for the interface’s configuration.

Create an XML filter as a string and pass it to get_config() method as an argument.

Create a JSON filter as a string and pass it to the get_config() method as an argument.

Use the JSON library to parse the data returned by the NETCONF server for the interface’s configuration.

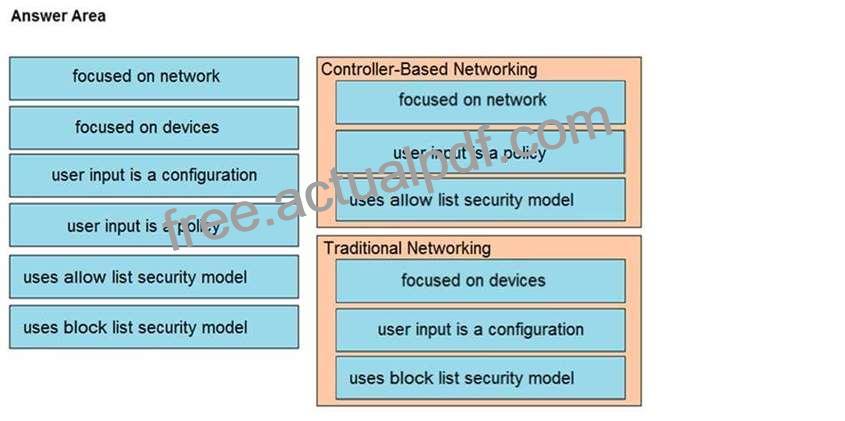

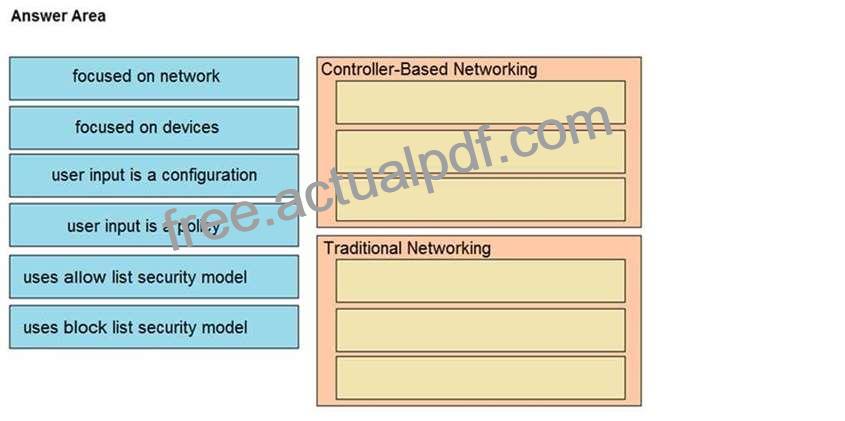

NO.278 DRAG DROP
Drag and drop the characteristics of networking from the left onto the correct networking types on the right.
Select and Place:

Section: Automation and Programmability

NO.279 Cisco Catalyst switches CAT1 and CAT2 have a connection between them using ports FA0/13. An 802. 1Q trunk is configured between the two switches. On CAT1, VLAN 10 is chosen as native, but on CAT2 the native VLAN is not specified.
What will happen in this scenario?

802.1Q giants frames could saturate the link.

VLAN 10 on CAT1 and VLAN 1 on CAT2 will send untagged frames.

A native VLAN mismatch error message will appear.

VLAN 10 on CAT1 and VLAN 1 on CAT2 will send tagged frames.

NO.280 What are two benefits of controller-based networking compared to traditional networking?

controller-based increases network bandwidth usage, while traditional lightens the load on the network.

controller-based inflates software costs, while traditional decreases individual licensing costs

Controller-based reduces network configuration complexity, while traditional increases the potential for errors

Controller-based provides centralization of key IT functions. While traditional requires distributes management function

controller-based allows for fewer network failure, while traditional increases failure rates.

Cisco DNA Center Device Management
3. Monitor the cloud for software update
5. Uses CLI templates to apply a consistent configuration to multiple devices at an individual location
6. Uses NetFlow to analyse potential security threats throughout the network and take appropriate action on that traffic Traditional device management
2. Manages device configuration on a per-device basis
4. Security is managed near the perimeter of the network with firewalls, VPNs, and IPS Implements changes via an SSH terminal

NO.281 Which protocol requires authentication to transfer a backup configuration file from a router to a remote server?

DTP

FTP

SMTP

TFTP

NO.282 Which action must be taken to assign a global unicast IPv6 address on an interface that is derived from the MAC address of that interface?

explicitly assign a link-local address

disable the EUI-64 bit process

enable SLAAC on an interface

configure a stateful DHCPv6 server on the network

Section: Network Fundamentals

NO.283 Refer to the exhibit.

Which route does R1 select for traffic that is destined to 192 168.16.2?

192.168.16.0/21

192.168.16.0/24

192.168 26.0/26

192.168.16.0/27

Explanation
The destination IP addresses match all four entries in the routing table but the 192.168.16.0/27 has the longest prefix so it will be chosen. This is called the “longest prefix match” rule.

NO.284 Refer to the exhibit.

Which two prefixes are included in this routing table entry? (Choose two.)

192.168.1.17

192.168.1.61

192.168.1.64

192.168.1.127

192.168.1.254

NO.285 in Which way does a spine and-leaf architecture allow for scalability in a network when additional access ports are required?

A spine switch and a leaf switch can be added with redundant connections between them

A spine switch can be added with at least 40 GB uplinks

A leaf switch can be added with a single connection to a core spine switch.

A leaf switch can be added with connections to every spine switch

Spine-leaf architecture is typically deployed as two layers: spines (such as an aggregation layer), and leaves (such as an access layer). Spine-leaf topologies provide high-bandwidth, low-latency, nonblocking server-to-server connectivity.
Leaf (aggregation) switches are what provide devices access to the fabric (the network of spine and leaf switches) and are typically deployed at the top of the rack. Generally, devices connect to the leaf switches. Devices can include servers, Layer 4-7 services (firewalls and load balancers), and WAN or Internet routers. Leaf switches do not connect to other leaf switches. In spine-and-leaf architecture, every leaf should connect to every spine in a full mesh.
Spine (aggregation) switches are used to connect to all leaf switches and are typically deployed at the end or middle of the row. Spine switches do not connect to other spine switches.
Reference: https://www.cisco.com/c/en/us/products/collateral/switches/nexus-9000-series-switches/guide-c07-733228.html
